Injection Bonded Ferrite

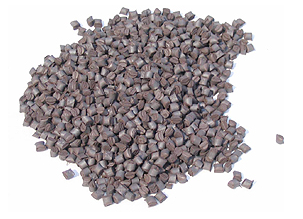

Injection Ferrite Bonded Magnetic Compound

It is necessary to have advanced facilities and technology to provide high-quality low-price pellets for users. On the basis of importing the advanced granulator, the surface treatment technology, flame resistancye technology, and compounding technology were developed by ourselves. Various grades and specifications of plastic ferrite magnet compound and pellets can be provided to the customers by means of strict quality control.

Application:

Isotropic injection products

Anisotropic injection products

Characteristics Of Injection Ferrite Bonded Magnet

Magnetic Characteristic Of Injection Ferrite Bonded Magnet


TYPE NO.
Binder
Magnet Material
Br(mT)Gs
Hcb(kA/m)Oe
Hcj(kA/m)Oe
BH(max)(kJ/m3)MGOe
Density(g/cm3)
Usage
FBP-1210
Nylon 6
Ba ferriteSr ferrite
65~75650~750
40~48503~603
190~2302400~2890
0.6~0.80.07~0.1
2.4~2.5
PCM for TV, Monitor
FBP-1211
Nylon 6Nylon 12
Ba ferriteSr ferrite
110~1301100~1300
70~85880~1068
190~2302400~2890
1.5~3.00.19~0.38
2.7~3.2
Isotropic injection magnet
FBP-1212
Nylon 6Nylon 12
Ba ferriteSr ferrite
130~1501300~1500
85~1051070~1320
190~2302400~2890
3.0~4.20.38~0.53
3.2~3.7

FBP-1213
Nylon 6Nylon 12
Ba ferriteSr ferrite
210~2402100~2400
120~1701510~2140
160~2302010~2890
7.0~12.00.88~1.5
3.0~3.5
Anisotropic injection magnet
FBP-1214
Nylon 6Nylon 12
Ba ferriteSr ferrite
250~2602500~2600
164~1742060~2190
210~2302640~2890
11.9~12.51.5~1.57
3.35~3.55

FBP-1215
Nylon 6Nylon 12
Sr ferrite
250~2602500~2600
174~1842190~2310
230~2802890~3520
12.1~12.71.52~1.6
3.35~3.55

FBP-1216
Nylon 6Nylon 12
Sr ferrite
250~2602500~2600
184~1942310~2440
280~3203520~4000
12.3~12.91.55~1.62
3.35~3.55

FBP-1217
Nylon 6Nylon 12
Sr ferrite
270~2802700~2800
170~1902140~2390
210~2302640~2890
14.3~14.91.8~1.87
3.5~3.65

FBP-1218
Nylon 6Nylon 12
Sr ferrite
270~2802700~2800
180~2002260~2390
230~2802890~3520
14.4~15.01.80~1.88
3.5~3.65

FBP-1219
Nylon 6Nylon 12
Sr ferrite
270~2802700~2800
190~2002390~2510
280~3203520~4000
14.5~15.11.82~1.89
3.5~3.65

FBP-1220
Nylon 6Nylon 12
Sr ferrite
275~2852750~2850
180~2002260~2510
210~2502640~3140
14.7~15.51.85~1.95
3.60~3.70

FBP-1221
Nylon 6Nylon 12
Sr ferrite
285~2952850~2950
190~2102390~2640
210~2502640~3140
15.5~17.01.95~2.14
3.65~3.75

FBP-1222
PPS
Sr ferrite
245~2652450~2650
170~1802140~2260
210~2502640~3140
11.0~13.01.38~1.63
3.48~3.65


Physical Characteristics of Injection Ferrite Magnet


Type NO.
Density(g/cm3)
Tension Strength(Kg/cm2)
Bend Strength(Kg/cm2)
Impact Strength(Kg×cm/cm2)
Hardness(Rsc)
Water Absorption(%)
Heat Distortion Temperature(°C)
FBP-1210
2.5~2.7
630
1000
25.0
102
0.07
110
FBP-1211
2.7~3.0
630
1100
25.0
103
0.07
110
FBP-1212
2.6~2.9
630
1100
24.0
103
0.07
115
FBP-1213
3.0~3.5
630
1100
23.0
104
0.07
113
FBP-1214
3.1~3.5
630
1200
23.0
116
0.07
117
FBP-1215
3.35~3.55
630
1150
23.0
110
0.07
117
FBP-1216
3.35~3.55
600
1150
21.0
112
0.05
118
FBP-1217
3.5~3.65
550
1200
20.0
112
0.05
120
FBP-1218
3.5~3.65
550
1200
19.0
114
0.05
120
FBP-1219
3.5~3.65
500
1200
17.0
115
0.04
125
FBP-1220
3.60~3.70
470
900
12.0
115
0.04
128
FBP-1221
2.65~3.75
450
800
12.0
115
0.04
135
FBP-1222
3.48~3.65
430
800
8.5
115
0.04
137
