Fujian Xingyuan Magnetic Materials Co.,Ltd

Magnetic Base

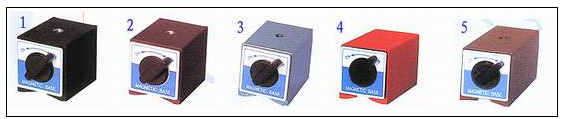

1.Magnetic Base


NO
Model
Order
Work Magnetic Force
Height
Width
Length
Weight
Size of Installation Hole
1
MB-4D
10101
392N(40kg)
55mm
50mm
58mm
0.9kg
M8×1.25 Depth 7
2
MB-6D
10102
588N(60kg)


63mm
1.0kg

3
MB-8D
10103
784N(80kg)


69mm
1.2kg

4
MB-10D
10104
980N(100kg)


88mm
1.6kg

5
MB-12D
10105
1178N(120kg)


118kg
1.8kg


2.Magnetic Stand With Non-microadjustment


Model
Order
Work Magnetic Force
Main Body
Main Stem
Assistant Stem
Diameter of Hole
WorkAngle
Weight







H
W
L
Length
Diameter
Length
Diameter



MB-B
10201
392N(40kg)
55
50
58
176
12
160
10
4.5/8.0+0.02or4.5/9.5+0.02
150°
1.4
CZ-6C
10202
588N(60kg)


63






1.5
CZ-8C
10203
784N(80kg)


69






1.7


3.Magnetic Stand With Microadjustment


Model
Order
Work Magnetic Force
Main Body
Main Stem
Assistant Stem
Diameter of Hole
WorkAngle
Weight







H
W
L
Length
Diameter
Length
Diameter



MB-BV
10301
392N(40kg)
55
50
58
176
12
150
10
4.5/8.0+0.02or4.58/9.5+0.02
150°
1.4
WCZ-6C
10302
588N(60kg)


63






1.5
WCZ-8C
10303
784N(80kg)


69






1.7

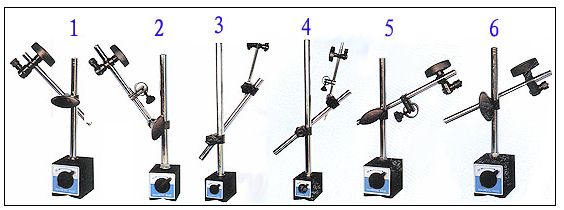

4.Magnetic Stand With Extra Stem


NO
Model
Order
Work Magnetic Force
Main Body
Main Stem
Assistant Stem
Diameter of Hole
WorkAngle
Weight








H
W
L
Length
Diameter
Length
Diameter



1
CZ-6CL
10401
588N(60kg)
55
50
63
225
16
180
12
4.5/8.0+0.02or4.58/9.5+0.02
150°
2.0
2
WCZ-6CL
10402






220




3
CZ-10DL
10403
980N(100kg)
65
60
100
400
20
380
18

Vario-us Angle
5.0
4
WCZ-10DL
10404






400




5
CZ-6C-I
10405
588N(60kg)
55
50
63
225
12
190
10

150°
1.5
6
WCZ-6C-I
10406
